Gantry CNC Plasma Cutting Machine With HPR Plasma And EDGE
Controller
Description:
Appearance is concise and easy, with a standard scale, high speed,
high precision, multi-function CNC cutting machine.Use one-piece
modular structure, make according to the quick, convenient, can add
with smoking workbench, in order to achieve environmental
protection requirement, the regime more linear cutting with total
rise always fall at the same time, greatly improve production
efficiency, she is a multifunctional smoke control, more perfect
performance of medium-sized CNC cutting machine.
Feature:
1. This machine equiped with Burny or Hypertherm controller, and HD
plasms.
2. All our machines are made according to ESAB's standard.
3. Beam adpots Q345B welded square steel tube structure with stress
release by tempering, it has high intensity and rigidity.
4. After precision machining of the surface,the crossbeam has good
rigidity and higi precision and excellent heat dissipation.
5. The product is suitable for equipment with any kinds of CNC
systems.
Technical Parameters for Precise CNC Plasma And Flame Cutting
Machine:
| 1 | Track span | 3000-9000mm |
| 2 | Track length | according to customers' requirement |
| 3 | Transverse effective cutting | 800mm shorter than track length |
| 4 | Longitudinal effective cutting | 3000mm shorter than track span |
| 5 | No of torches | according to customers' requirement |
| 6 | Cutting speed | 0-6000mm/min |
| 7 | Traveling speed | 0-12000mm/min |
| 8 | Torch lifting range | 200-300mm |
| 9 | Plasma cutting thickness | Depending on plasma power supply |
| 10 | Flame cutting thickness | 6-300mm |
Application:
The cutting accuracy reaches the excellent target for the cutting
of Aluminum Sheet, Stainless Steel Plate, Titanium Plate, Copper
Plate, Galvanized Sheet, Advertising with Luminous
Three-Dimensional Characters and Metal Panel with T-shot. The
cutting incision is small, tidy and neat, with no burr, so that
avoid the second process.
Guarantee & After Sales Service:
1). 24 hours technical support by email or calling.
2). Friendly English version manual and operation video CD disc.
3). Change the parts for free in warranty period.
1. A: what is your payment terms?
Q: our payment terms is T/T, L/C, western, union
2. A: what time do you delivery?
Q: 15 - 20 days after receiving the balance.
3. A: what about your sale-after service?
Q: we have detail English manual to guide you how to run machine,if
any doubt,our enginner will use Teamview to
control your software on your computer,meanwhile chat with you on
skype.
4. A; What can you du anything to help me?
Q: Please don't hesitate to contact me, I'm not only a saler but
also your solution provider.
Cutting Samples:

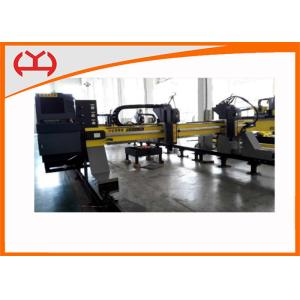

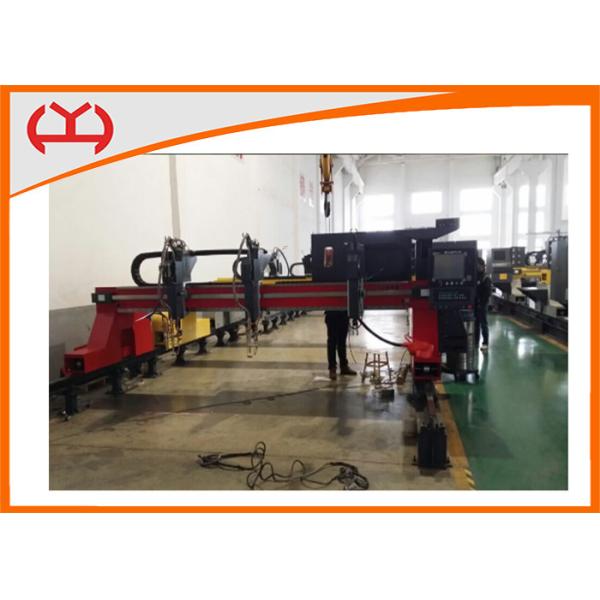

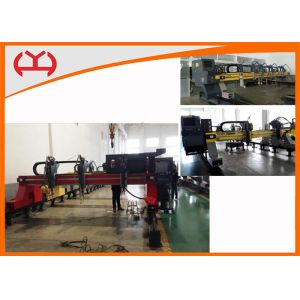

CNC Plasma And Flame Cutting Machine:
