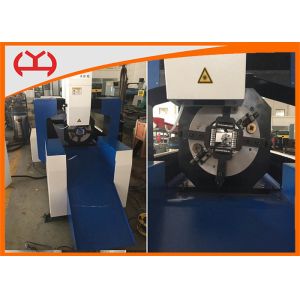

Automatic Cnc Laser Tube Cutting Machine For Metal Processing
1. Gantry dual drive, adopting advanced gear rack transmission
structure. Equipped with grinding gear and rack, and through the
precision collimator one time metering assembly. The machine will
secure long-term high cutting speed, high precision transmission.
2. The machine table machined by large planomiller, with high
temperature annealing twice, and high strength complete welding,
customer will have long-term payback.
Features:
1. Support segmental pierce, Progressive pierce, Pre-pierce,
support separately setting laser watt, frequency, laser type, air
type, pressure, auto cutting height during pierce and cutting.
2. Support to set separate lead in/out speed according to adjustment
of laser power.
3. Big storage, allowing user to save all cutting parameters to use
it again on same material.
4. Breakpoint recovery, CNC can return to the point where the
cutting stopped, allowing partial file cutting. It can go to any point to start there after stop or pause.
5. Same software can support round tube cutting and plate cutting,
programming is same, and support intersect cutting.
6. Support to cut at set height, automatically seek edge, and start
from outside of workpiece, or lift up when torch is out of
workpiece.
7. Powerful expanding capability, over 15 PLC process programming,
over 30 programmable processes.
8. Input/output and alarm input are programmable, support wireless remote
control, and support internet
Competitive Advantage:
We can choose brand laser head origins from USA, Germany. It
depends on customer’s request, or we would suggest according to the
laser power you choose.
Surely laser head is standard supplied with closed-loop control
Auto focus system.
We use Panasonic or Yaskawa servo, always confirm it with customer
in advance.
Gear rack is YYC, Linear guide is THK.
Alpha gear rack and gearbox is available too.
Technical Parameters for Fiber Laser Cutting Machine :
| Item | Model |
| YH2513 | YH3015 | YH4020 |
| Effective size(mm) | 2500*1250 | 3000*1500 | 4000*2000 |
| Max process height(mm) | | 90 |
| Effective stroke | X axis(mm) | 2550 | 3050 | 4050 |
| Y axis(mm) | 1300 | 1550 | 2050 |
| Z axis(mm) | 100 |
| Position accuracy | X axis(mm/m) | ±0.03 |
| Y axis(mm/m) | ±0.03 |
| Z axis(mm/m) | ±0.01 |
| Repeated accuracy | X axis(mm) | ±0.02 |
| Y axis(mm) | ±0.02 |
| Z axis(mm) | ±0.005 |
| Fast positioning speed | X axis(m/min) | 72 |
| Y axis(m/min) | 72 |
| Z axis(m/min) | 15 |
| Max cutting speed | 30m/min |
| Max cutting thickness | 6mm/C S; 3mm/ S S |
| Power consumption | 6.8KW/h |
| Protection level | IP54 |
| Machine weight(Ton) | 3.58 | 4.35 | 5.12 |
| Size L*W*H(mm) | 3420*1785*1346 | 4116*2165*1346 | 5628*2950*1346 |
Service after sales:
1. Machine will be supplied with training video and user's manual in
English for installation, operation, maintenance and
trouble-shooting, and shall give technical guide by e-mail, fax,
telephone, skype…. for fast solution. We may offer technician for
onsite service, customer shall cover visa, ticket, local living
cost.
2. Customer may come to our factory for training. We will offer
training of installation, operation, machine trouble-shooting, and
maintenance.
During training in our workshop, we offer free training and living
cost for 7 days, limit 2 people.
