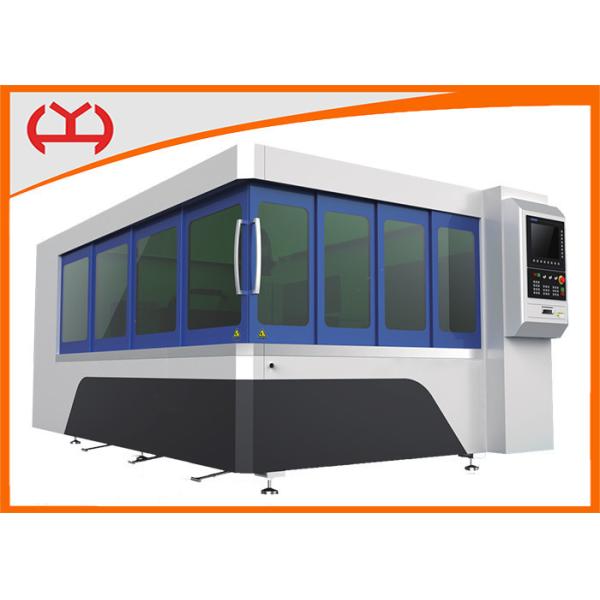

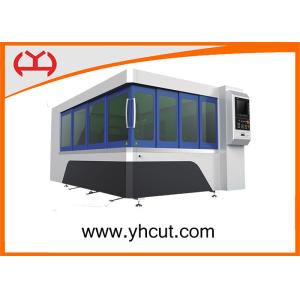

Cutting Area 3000 * 15000 Cnc Stainless Steel Fiber Laser Cutting
Machine
1. Gantry dual drive, adopting advanced gear rack transmission
structure. Equipped with grinding gear and rack, and through the
precision collimator one time metering assembly. The machine will
secure long-term high cutting speed, high precision transmission.
2. The machine table machined by large planomiller, with high
temperature annealing twice, and high strength complete welding,
customer will have long-term payback.
3. CNC system operation is simple, and easy to learn, low
requirements for operators.
4. Cutting graphics input multiple formats, powerful drawing and
editing graphics capabilities.
5. Special cutting sofrware, cutting process experts, data save
call function.
6.Proportional valve to control gas flow, air flow stability,
cutting surface quality.
7. Automatic lubrication system, machinebody running more smoothly,
long life.
8. Craft dust expert, like boat exhaust gas system design, the
effect is better
Competitive Advantage:
1. Double drive structure, stable and reliable movement.
2. Double cutting table, fast exchange speed, loading and unloading
conveniently, highly efficiency.
3. Machine protected by sheetmetal, safe.
4. Independent R&D, manufacturing machinebody special
processing technology,high precision, stable and reliable , long
service life.
5. Cast aluminum beam structure, light weight ,fast response, good
dynamic performance.
6. Precision gear rack drive reducer, with high precision, high
reasponse and high precision servo motor.
7. International first-class quality fiber laser, long history of
industrial applications, maintenance easily, stable and reliable.
8. High precision laser cutting head, imported optical lens,
focusing fine, easy to adjust and perfect.
9. Inresponse to the double closed loop control high capacitance,
low sensitive on the plate, the cutting quality is stable and
reliable.
10. Closed loop CNC control system, fast response, high speed, good
accuracy.
Technical Parameters for Fiber Laser Cutting Machine :
Item | Technical Parameters |
Type | 3015 |
Max Cutting Size(mm) | 3000X1500 |
Max Height of The Workpiece(mm) | 90 |
Effective Travel | X Axis (mm) | 3050 |
Y Axis (mm) | 1550 |
Z Axis (mm) | 100 |
Positional Accuracy | X Axis(mm/m) | ±0.04 |
Y Axis(mm/m) | ±0.04 |
Z Axis(mm/m) | ±0.01 |
Repeated
Positioning Accuracy | X Axis(mm) | ±0.03 |
Y Axis(mm) | ±0.03 |
Z Axis(mm) | ±0.005 |
Repid Positioning Speed | X Axis(m/min) | 80 |
Y Axis(m/min) | 80 |
Z Axis(m/min) | 30 |
Accelerated Sppeed(G) | 1 |
The Laser Power(W) | 500/700/1000/1500/2000/3000 |
The Power Consumption
of The Machine Tool((Kwh) | 4.85 |
Level of Protection | IP54 |
Total Weight(T) | 4.5 |
Boundary DimensionL×W×H(mm) | 4610X2941X2078 |
Cutting Samples:
