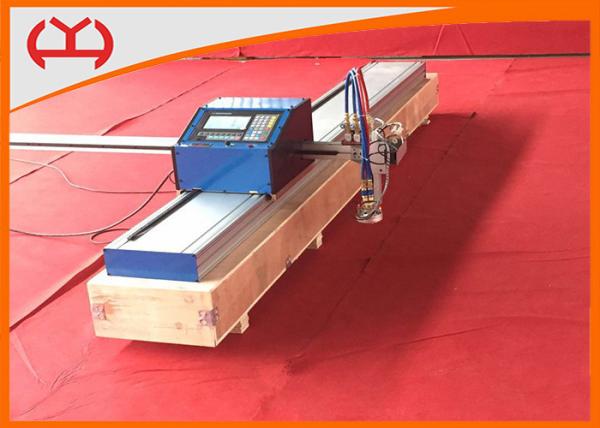

Portable CNC Cutting Machine / Small CNC Flame Cutter With Plasma
Torch Height
Description:
This portable cnc plasma cutting machine is modern cutting
equipment with digital program control. It has high cutting
precision, high material utilization and high production
efficiency. It can be widely used in automobile, shipbuilding,
petrochemical, boiler and pressure vessel, engineering machinery,
light industrial machinery and other industries.
Technical Parameters for Portable CNC Cutting Machine:
| 1 | Cutting shape | any shapes |
| 2 | LCD Display Dimension | 7.0Inches |
| 3 | Effective Cutting Width (X axis) | 1500mm |
| 4 | Effective Cutting Length (Y axis) | 3000mm |
| 5 | Cross Beam Length | 2000mm |
| 6 | Longitudinal Rail Length | 3500mm |
| 7 | Cutting Speed | 0-4000mm per minute |
| 8 | Plasma Cutting Thickness | 0.5--20mm ( Depends on plasma power source capacity) |
| 9 | Flame Cutting Thickness | 5--200mm |
| 10 | Drive Mode | single-side |
| 11 | Cutting Mode | flame and plasma |
| 12 | Ignition device | Auto ignition device |
| 13 | Height regulating device | Arc voltage height control (THC) or Electric adjustable high |
| 14 | File transmission | USB transmission |
| 15 | Gas Pressure | Max. 0.1Mpa |
| 16 | Oxygen Pressure | Max.0.7Mpa |
| 17 | Cutting Gas | Acetylene/Propane |
| 18 | Plasma Power Source | Yahong cut-100A,cut-130A, cut-200A or other |
| 19 | Plasma Air | Only pressed Air |
| 20 | Software | FastCAM Standard vision(support Auto CAD/ Solidworks/ CAXA/ Types
etc.) |
| 21 | Plasma Air Pressure | Max. 0.8Mpa |
| 22 | Cutting precision | ±0.5mm National standard JB/T10045.3-99 |
| 23 | Control accuracy | ±0.01mm |
| 24 | Power Supply Voltage/Frequency | 220V 50HZ / 60HZ |
| 25 | Rated Power Supply | 200W |
| 26 | Working Temperature | -10℃-60℃, Relative Humidity, 0-95%. |
Features:
1. Good Working stability, high frequency interfere effectively
plasma, lightweight portable.
2. Support two cutting ways of flame and plasma.
3. Economic benefits, the structure and design is contracted. it
adopts humanistic positive man-machine conversation and operate
easily.
4.Cutting has high quality, high effect level, high precision.
5. Programmable cutting arbitrary shape parts of line and arc.
6. Dynamic and static graphic display, easy to learn. Can convert
CAD file to program file in computer, through USB flash drive transmits to machine
torealize cutting all kinds’ graphs. And also can program and
operate directly on the machine.
7. English and Chinese interface can free to convert.
Applications:
It is suitable for large, medium and small mines, widely used in
automobile, shipbuilding, engineering machinery, agricultural
machinery, suitable for carbon steel (flame cutting), and stainless
steel.
