Cnc Automated Air Plasma Cutting Machine Fastcam Software 220V 50HZ
/ 60HZ
Description:
1. This product with reasonable overall structure is the lightest,
most economical cutting machine.
2. Transversal effective cutting width is 1.0m and 1.5m and
longitudinal effective cutting length is 1.5, 2m, 2.5m,3m and 6m.
3. With automatic ignition and the electronic lifting system, it
supports two cutting ways of plasma and flame.
4. It can be applied to metal materials or non-ferrous metal
cutting of medium and small enterprises.
5. It can be used in either indoor or outdoor situations.
6. Any complex plane Graphics can be cut.
7. Flexible, easy to use, move anytime, it do not occupy fixed
sites.
Specifications:
Technical Parameters for Portable CNC Cutting Machine
| 1 | Cutting shape | any shapes |
| 2 | LCD Display Dimension | 7.0Inches |
| 3 | Effective Cutting Width (X axis) | 1500mm |
| 4 | Effective Cutting Length (Y axis) | 6000mm |
| 5 | Cross Beam Length | 2000mm |
| 6 | Longitudinal Rail Length | 6500mm |
| 7 | Cutting Speed | 0-4000mm per minute |
| 8 | Plasma Cutting Thickness | 0.5--20mm ( Depends on plasma power source capacity) |
| 9 | Flame Cutting Thickness | 5--200mm |
| 10 | Drive Mode | single-side |
| 11 | Cutting Mode | flame and plasma |
| 12 | Ignition device | Auto ignition device |
| 13 | Height regulating device | Arc voltage height control (THC) or Electric adjustable high |
| 14 | File transmission | USB transmission |
| 15 | Gas Pressure | Max. 0.1Mpa |
| 16 | Oxygen Pressure | Max.0.7Mpa |
| 17 | Cutting Gas | Acetylene/Propane |
| 18 | Plasma Power Source | Yahong cut-100A,cut-130A, cut-200A or other |
| 19 | Plasma Air | Only pressed Air |
| 20 | Software | FastCAM Standard vision(support Auto CAD/ Solidworks/ CAXA/ Types
etc.) |
| 21 | Plasma Air Pressure | Max. 0.8Mpa |
| 22 | Cutting precision | ±0.5mm National standard JB/T10045.3-99 |
| 23 | Control accuracy | ±0.01mm |
| 24 | Power Supply Voltage/Frequency | 220V 50HZ / 60HZ |
| 25 | Rated Power Supply | 200W |
| 26 | Working Temperature | -10℃-60℃, Relative Humidity, 0-95%. |
Applications:
It can cut mild steel ( flame cutting) and high carbon steel,
stainless steel, aluminum, copper and other non-ferrous metal
(plasma cutting), etc, be widely used in industries such as
machinery, automobile, ship building, petro-chemical, war industry,
metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
Our Service:
Pre-sale Service
1.supply item design,processdesign.
2.Help you chose the fit machine.
3.Manufacture the machine according to your and accessories.
Sale Service
1.acceptance of equipment together with you.
2.offer you help to make the operating insruction.
3.any other help you need.
After-sale Service
1.one year warranty.
2.Free accessories due to quality problem.
3.Free repair whole using life(without the freight and accessories
charge).

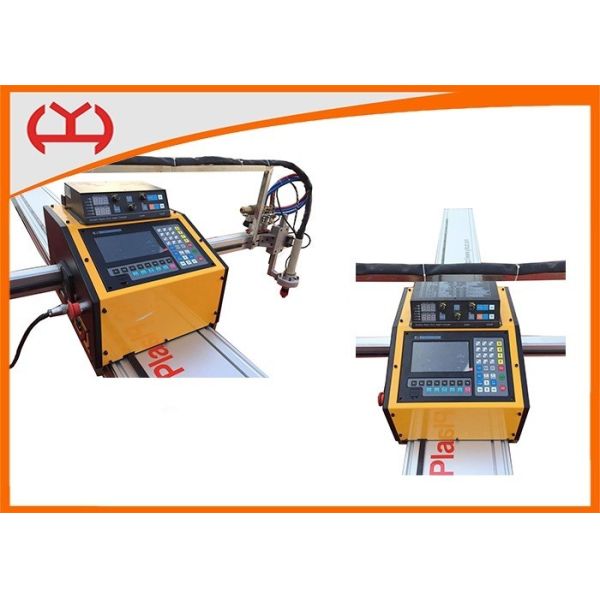

Portable CNC Cutting Machine :
