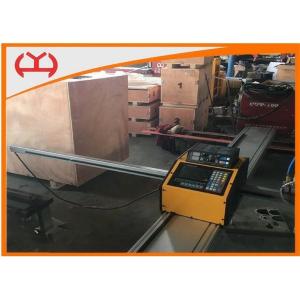

Single Side Small Portable CNC Flame Cutting Machine For Sheet
Metal Cutting
Description:
The machine is all welded as seamless steel structure. Steady
structure and long life time. High configuration, high cutting
speed and precision. Auto ARC starting. Steady performance. Control
system: DSP handset control, with USB interface. Cutting material: steel, copper, iron, aluminum, galvanized
sheet, titanium plates, and so on.
Competitive Advantage:
1. graphic display function
2. English interface and other 8 languages
3. Excellent graph library ,48 graphic
4. Light beam design,good rigidity,light weight and tiny moving
inertia
5. Small cutting gap,no residua
6. Imported linear guide rail , heavy bearing, run more smoothly.
7. U disk embedded processional plasma &machinery engraving
control system, powerful function, easy to operate. 7-inch color
LCD display, more humane .
8. Using imported bearing high power air cooling spindle, strong
cutting force.
Technical Parameters for Portable CNC Cutting Machine
| 1 | Cutting shape | any shapes |
| 2 | LCD Display Dimension | 7.0Inches |
| 3 | Effective Cutting Width (X axis) | 1500mm |
| 4 | Effective Cutting Length (Y axis) | 6000mm |
| 5 | Cross Beam Length | 2000mm |
| 6 | Longitudinal Rail Length | 6500mm |
| 7 | Cutting Speed | 0-4000mm per minute |
| 8 | Plasma Cutting Thickness | 0.5--20mm ( Depends on plasma power source capacity) |
| 9 | Flame Cutting Thickness | 5--200mm |
| 10 | Drive Mode | single-side |
| 11 | Cutting Mode | flame and plasma |
| 12 | Ignition device | Auto ignition device |
| 13 | Height regulating device | Arc voltage height control (THC) or Electric adjustable high |
| 14 | File transmission | USB transmission |
| 15 | Gas Pressure | Max. 0.1Mpa |
| 16 | Oxygen Pressure | Max.0.7Mpa |
| 17 | Cutting Gas | Acetylene/Propane |
| 18 | Plasma Power Source | Yahong cut-100A,cut-130A, cut-200A or other |
| 19 | Plasma Air | Only pressed Air |
| 20 | Software | FastCAM Standard vision(support Auto CAD/ Solidworks/ CAXA/ Types
etc.) |
| 21 | Plasma Air Pressure | Max. 0.8Mpa |
| 22 | Cutting precision | ±0.5mm National standard JB/T10045.3-99 |
| 23 | Control accuracy | ±0.01mm |
| 24 | Power Supply Voltage/Frequency | 220V 50HZ / 60HZ |
| 25 | Rated Power Supply | 200W |
| 26 | Working Temperature | -10℃-60℃, Relative Humidity, 0-95%. |
Applications:
Our portable cnc plasma cutting machine is mainly for cutting metal
material, and it widely used for outer frame processing of
electromechanical products, advertising signs, decoration, garden
iron art,vehicle manufacturing, ship building, electric appliances,
metal plate materials cutting and other industries.
